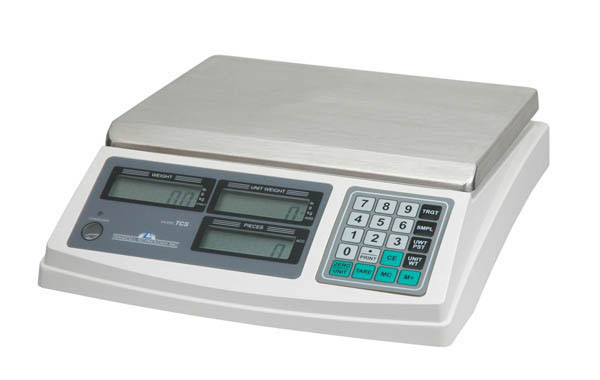

TCS3T COUNTING SCALE:

This economical high resolution counting scale is designed with simplicity in mind. In less than a minute operators are easily familiar with standard operation. Performance is enhanced by utilizing over 300,000 internal counts and the vibration resistance feature helps the TCS3T to continually receive accurate measurements even under disturbing environments.



Standard Features & Benefits:

  • 20 KEY NUMERIC KEYPAD- The 20 key membrane panel allows entry of numeric data, such as known tare values, APW'd, and specific sample sizes from 1 to 99,999.
  • OPERATES FROM RECHARGEABLE BATTERY OR AC POWER CORD
  • TARGET FUNCTION (High limit value)
  • PRESET TARE (up to 10 weights)
  • STATIC OVERLOAD PROTECTION
  • THREE LARGE BACKLIT LCD'S- Displays simultaneously show Gross Weight, Unit Weight, and Piece Count.
  • 1:300,000 INTERNAL RESOLUTION- High internal resolution provides greater sensitivity, for increased counting accuracy and weighments.
  • ACCUMULATOR FUNCTION- Can accumulate either pieces or weight, and print total.
  • RS 232 PORT- Connect to Serial Printer.
  • VIBRATION RESISTANCE
  • PRESET UNIT WEIGHT (Up to 10 weights)
  • CHARGING INDICATOR
  • LOW BATTERY INDICATOR
  • AUDIBLE FEEDBACK

Model:

Capacities:

TCS3T- 6 lb 6 lb x 0.0002 lb (3 kg x 0.0001 kg)
TCS3T- 12 lb 12 lb x 0.0005 lb (6 kg x 0.0002 kg)
TCS3T- 30 lb 30 lb x 0.001 lb (15 kg x 0.0005 kg)
TCS3T- 60 lb 60 lb x 0.002 lb (30 kg x 0.001 kg)

Dimensions:

Scale Dimensions: 13.5" x 11.8" x 3.9"
(343 mm x 300 mm x 99 mm)
Platter Dimensions: 11" x 9"
(280 mm x 232 mm)
Packaging Dimensions: 15.6" x 13.8" x 6.5"
(395 mm x 350 mm x 165 mm)

Specifications:

Displays: 5-1/2, 7-Segmment, 7 annunciators LCD with LED backlight
6-digit, 7 segment, 4 annunciators LCD with LED backlight
Counting Capacity: 99,999
Units of Measure: lb / kg
Operating Temperature: 32ºF to 104ºF (0ºC to 40ºC)
Power Requirements: AC115V, 60 Hz
Housing: Ivory ABS
Sub Platform: Metal
Platform: ABS with stainless shroud
Feet: Non-Skid Hard Rubber
Shipping Weight: 11.1 lb (5.0 kg)
Warranty: 1 Year Limited Warranty
Battery Life: 150 hrs (continuous)
Recharge Time: 8 hrs
Scale Dimension: 13.5” x 11.8” x 3.9”
Platter Dimension: 11” x 9”
6VDC, 4mAH rechargeable battery included
